CC800A Automatic Programmable Charging/Recovery Scales
Key Features
CC800A Automatic Programmable Charging/Recovery Scales High Capacity Scale
- 220 lb (100 kg) capacity / 0.25 oz (1 g) resolution
- Programmable for automatic charging or recovery via the built-in solenoid valve
- Accommodates 30, 50, 90 & 125 lb cylinders
- Removable 8.75˝ platform for operation in or out of the protective case
- Easy to read, fast response measurement
- Visual and mechanical overload protection
- CC800A Manual
CC800A Scale Features
- The world’s most advanced strain gage bridge load cell technology
- Unparalleled accuracy, precision, and reliability
- Calibrated to strict NIST (National Institute of Standards & Technology) standards
- Ergonomic handheld remote controls with large, high contrast wide-angle LCD displays
- Rugged cast aluminum platform and base assemblies for stability and long life
- Electronic and mechanical overload protected to withstand 150% of capacity
- Environmentally sealed and temperature compensated for reliable operation in extreme environments
- Automatic tare upon start up and manual zero function
- Magnetic backing on hand held display for mounting to metal services or 360° swivel hanging hook
- Durable protective transport case enables operation of scale in or out of the enclosure
- Ideal for critical charging of systems large or small and all refrigerant recovery applications
- The widest range of programmable, manual, or wireless/hand-held configurations
CPS charging scales are in conformity with the following standards or other normative documents:
- EN 61326:2006 (Electrical equipment for measurement, control, and laboratory use – EMC Requirements)
- IEC 61000-4-2:2001 (Electrostatic Discharge Immunity Test)
- IEC 61000-4-3:2008 (Radiated, radio-frequency, electromagnetic field immunity test
- Designed and manufactured in the USA with U.S. and globally sourced components
Downloads
Description

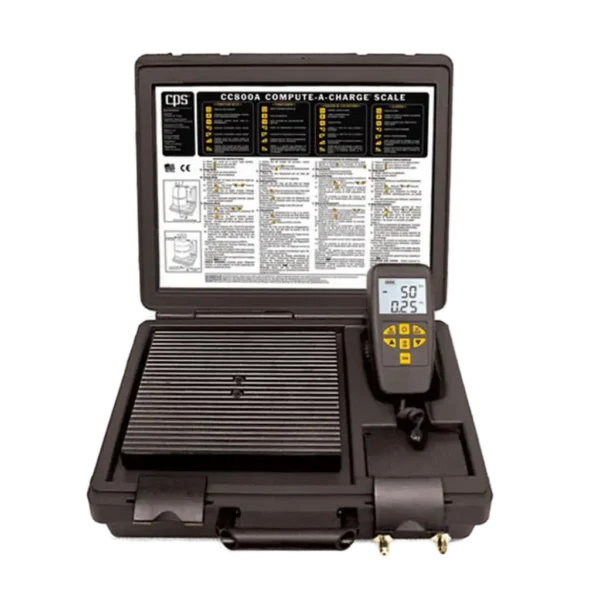

The CC800A is the state of the art battery operated weighing and charging scale. The CC800A has been designed to be accurate, rugged and reliable over a large weighing span (220 lbs/ 100kg). The CC800A can also charge the high-pressure refrigerant R-410A. The CC800A incorporates a hand held unit with 7 keys and an extra large LCD display for easy viewing. A space saving flex-cord interconnects between the hand held unit and the platform. The platform incorporates a corner adjusted, heavy-duty load cell. The blow molded case houses the 9VDC solenoid valve with 1/4 SAE inlet and outlet ports.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 35 × 7 × 29 cm |
