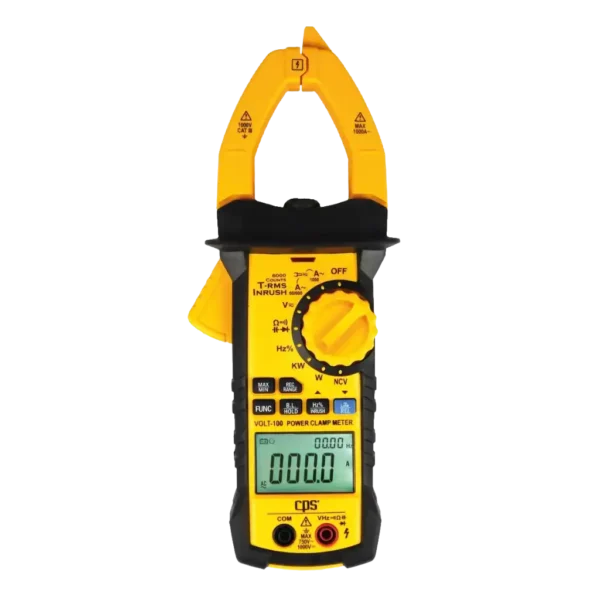

VOLT-100 Clamp Power Meter (Wireless)

Key Features

• Use with or without the CPS Link app. Connects to Apple and Android smartphones & tablets via Bluetooth
• Power factoring to determine true power consumption
• Data logging of electrical readings
• Utility data feed calculates actual cost/hour of appliances
• CAT. III 1,000 V rating • True RMS measurements
• Non-contact voltage tester
• Maximum Voltage: 750 V AC; 1000 V DC
• Auto range and manual measuring
• Measuring range overload protection
• Display auto-off
• Display backlight
• Automatic polarity indication
• Max/Min and relative measuring function

Measures

• Inrush current
• AC current
• Resistance
• AC/DC voltage Phase angle
• Harmonics
• Frequency
• Capacitance
• Duty cycle
• Diode connection

Includes

• 39˝ (1 m) test leads
• Durable, portable storage case
• 9V battery
• Owner’s manual
• One year warranty

Specifications

• Data Logging Up to 1,000 samples
• Sampling Rate 1X/sec. for max of 16 mins., 40 secs.
• Maximum Input Current 1000A AC
• Maximum Input Voltage 750V AC (TRMS); 1000V DC
• Wattage 3W/100W/4000W/10kW/100kW/750kW
• AC Current 60A/600A/1000A Inrush
• Current 60A/600A/1000A Resistance 600Ω/6kΩ/60kΩ/600kΩ 6MΩ/60MΩ
• Capacitance 9.999nF/99.99nF/999.9nF/9.999µF 99.99µF/999.9µF/9.999mF/99.99mF
• Jaw Opening 1.6˝ (42mm)
• Max. Size (H x W x D) 9.4˝ x 1.9˝ x 3.6˝ (238 x 50 x 92 mm) Weight 0.92 lb (420 g)

Downloads

1. VOLT-100_Product-Manual
