Manifold Gauges

An AC manifold gauge is a must-have tool for any service technician who is looking to perform basic pressure check, leak inspection, refrigerant refill or recharge. From Pro-Set 2 valve manifolds to BlackMax 4 valve manifolds, browse CPS Products’ options below:

BLACKMAX® wireless digital manifolds combine industry-leading accuracy with a rugged nylon water-resistant housing, durable elastomeric keypad and large backlighted LCD display. For use with or without CPS Link™ app— can work as a standalone device. CPS Link allows the convenience of running and monitoring the manifold from up to 300 feet away, while also providing additional capabilities not found in non-wireless versions.

  • Fast, convenient touch screen control
  • Comprehensive views of system measurements
  • Graphical depictions of test functions
  • Data logging
  • Geolocation data and more
  • Perform and monitor system measurements—in real time without the need to physically touch the manifold
  • Color scheme change according to refrigerant
  • Pressure or vacuum tests can be saved, stored or emailed as a graph
  • Multi-language

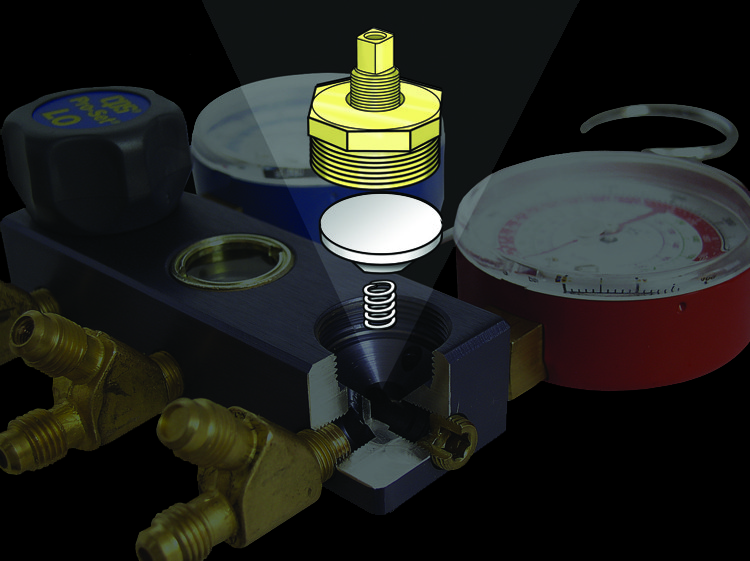

Vortech® Valves
Superior performance that actually can be measured!

The Vortech Deep Vacuum Valve System is an advanced diaphram valve system, certified 15 micron vacuum rating using precision-machined virgin Teflon™ core provides a full, unrestricted refrigerant flow and allows a light touch valve operation.

BLACKMAX® digital manifolds combine industry-leading accuracy with a rugged nylon water-resistant housing, durable elastomeric keypad and large backlighted LCD display.

Vortech® Valves
Superior performance that actually can be measured!

The Vortech Deep Vacuum Valve System is an advanced diaphram valve system, certified 15 micron vacuum rating using precision-machined virgin Teflon™ core provides a full, unrestricted refrigerant flow and allows a light touch valve operation.

  • Two valve black anodized aircraft aluminum machined manifold body
  • Vortech™ deep vacuum valves
  • 3-1/8” (80 mm) class 1.0 accuracy gauges built with internal silicon dampening cup for flutter-free operation
  • Nickel plated 1/4” SAE fitings
  • Large sight glass
  • Heavy duty nickel plated metal handles
  • Auxiliary center access port with Schrader valve
  • Protective gauge boots
  • Packaged in display tin
  • Designed and manufactured in USA with US and globally sourced components
Vortech® Valves
Superior performance that actually can be measured!

The Vortech Deep Vacuum Valve System is an advanced diaphram valve system, certified 15 micron vacuum rating using precision-machined virgin Teflon™ core provides a full, unrestricted refrigerant flow and allows a light touch valve operation.

Refrigerant(s) Gauges Manifold and Gauge Set
R22 R134A R404A R407C R410A Scale Pressure Low Gauge High Gauge (3) 5’ Premium Black & Chrome™ Hoses (3) 5’ with Ball Valve
°F Psi RGH4L RGH4H MV2H4P5Z MV2H4P5EZ (discontinued)
°C bar/Psi MV2O4P5Z MV2O4P5EZ

(includes VORTECH™ Valves)

  • Two valve black anodized aircraft aluminum machined body
  • Vortech™ deep vacuum valves
  • Triple Seal™ piston valves
  • Available in 3-1/8” (80 mm) class 1.0 accuracy gauges or 2 ½” (68 mm) class 1.6 accuracy gauges built with internal silicon dampening cup for flutter-free operation
  • Nickel plated 1/4” SAE fitings
  • Auxiliary center access port with Schrader valve
  • Protective gauge boots
  • Packaged in display tin
  • Designed and manufactured in USA with US and globally sourced components
Vortech® Valves
Superior performance that actually can be measured!

The Vortech Deep Vacuum Valve System is an advanced diaphram valve system, certified 15 micron vacuum rating using precision-machined virgin Teflon™ core provides a full, unrestricted refrigerant flow and allows a light touch valve operation.

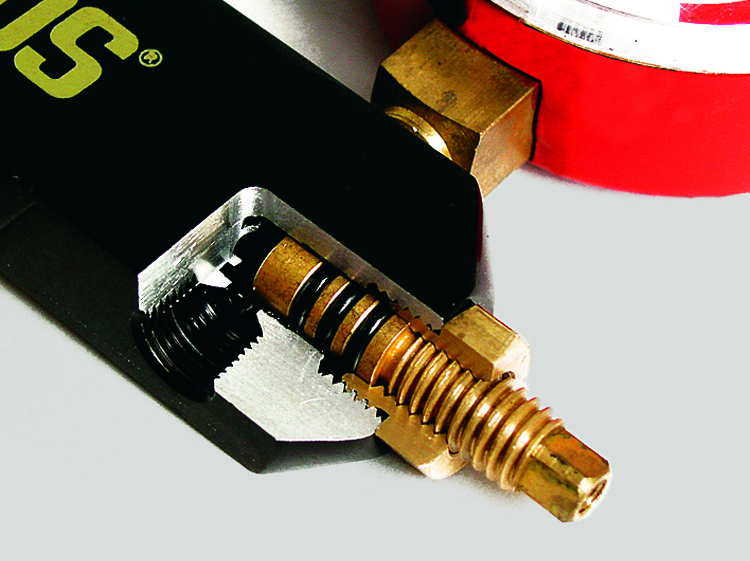

Triple-Seal Valves
Our proprietary Triple-Seal Valve System is engineered for superior performance using an innovative three Neoprene™ o-ring design

  • Back-seating o-ring seals valve nut when fully open
  • Floating nylon sealing disk
  • Valve stems retract fully to provide maximum flow
  • Mirror-like port finish for smooth valve movement
Refrigerant(s) Gauges Manifold and Gauge Set
R22 R134A R404A R407C R410A Gauge Size Accuracy Scale Pressure Low Gauge High Gauge Manifold and Gauge only (No Hoses) (3) 5’ Premium Black & Chrome™ Hoses (3) 5’
Hoses with Ball Valve
2-1/2” Class 1.6 °F Psi RGH5L RGH5H MBH5Z MBH5P5Z MBH5P5EZ
2-1/2” Class 1.6 °F/°C Psi/kPa RGB5L RGB5H MBB5Z MBB5P5Z MBB5P5EZ
    3-1/8” Class 1.0 °F Psi RGH4L RGH4H MBH4Z MBH4P5Z MBH4P5EZ
    3-1/8” Class 1.0 °C bar/Psi RGO4L RGO4H MBO4Z MBO4P5Z MBO4P5EZ
  • Two valve anodized aluminum black body
  • Triple Seal™ piston valves
  • 1/4” SAE 45° fittings
  • 3-1/8” (80 mm) class 1.0 accuracy gauges
  • Sure grip rubber over metal valve handles
  • Protective gauge boots
  • Extra access port in center with Schrader valve and hanging hook
Triple-Seal Valves
Our proprietary Triple-Seal Valve System is engineered for superior performance using an innovative three Neoprene™ o-ring design

  • Back-seating o-ring seals valve nut when fully open
  • Floating nylon sealing disk
  • Valve stems retract fully to provide maximum flow
  • Mirror-like port finish for smooth valve movement
Refrigerant(s) Gauges Manifold and Gauge Set
R22 R22 R134A R404A R407C R410A Scale Pressure Low Gauge High Gauge Manifold and Gauge only (No Hoses) (3) 5’
Premium Hoses
(3) 3’ Premium
Hoses with anti-blowback valves
(3) 3’
Premium hoses with ball valves
°F Psi RGH7L RGH7H MT2H7 MT2H7P5 MT2H7P5A MT2H7P5E
   °C  bar/Psi RGO7L RGO7H MT2O7 MT2O7P5 MT2O7P5A MT2O7P5E
  • Two valve anodized aluminum black body
  • Triple Seal™ piston valves
  • 1/4” SAE 45° fittings
  • 2 ½” (68 mm) class 1.6 accuracy gauges
  • Sure grip rubber over metal valve handles
  • Protective gauge boots
  • Extra access port in center with Schrader valve and hanging hook
Triple-Seal Valves
Our proprietary Triple-Seal Valve System is engineered for superior performance using an innovative three Neoprene™ o-ring design

  • Back-seating o-ring seals valve nut when fully open
  • Floating nylon sealing disk
  • Valve stems retract fully to provide maximum flow
  • Mirror-like port finish for smooth valve movement
Refrigerant(s) Gauges Manifold and Gauge Set
R12 R22 R134A R404A R407C R410A R502 Scale Pressure Low Gauge High Gauge Manifold and Gauge only (No hoses ) (3) 3’
Premium hoses
(3) 5’
Premium hoses
(3) 3’ Premium hoses with anti-blowback valves (3) 3’
Premium hoses with ball valves
    °F/°C Psi/kPa RGZL RGZH MBZ MBZS3 MBZS5
    °F Psi RGCL RGCH MBC MBCS3 MBCS5
    °F Psi RGDL RGDH MBD MBDP3 MBDP5 MBDP5A MBDP5E
    °F Psi RGHL RGHH MBH MBHP3 MBHP5 MBHP5A MBHP5E
    °C Psi/kPa RGTL RGTH MBT MBTP3 MBTP5 MBTP5A MBTP5E
    °C Psi/kPa RGOL RGOH MBO MBOP3 MBOP5 MBOP5A MBOP5E
  • Two valve anodized aluminum pink body
  • Choose between 1/4” SAE 45° or 1/2”-20 UNF fittings
  • 2 ½” (68 mm) class 1.6 accuracy gauges
  • Triple Seal™ piston valves
  • Sure grip rubber over metal valve handles
  • Protective gauge boots
  • Extra access port in center with Schrader valve and hanging hook
Triple-Seal Valves
Our proprietary Triple-Seal Valve System is engineered for superior performance using an innovative three Neoprene™ o-ring design

  • Back-seating o-ring seals valve nut when fully open
  • Floating nylon sealing disk
  • Valve stems retract fully to provide maximum flow
  • Mirror-like port finish for smooth valve movement
Fittings Refrigerant(s) Gauges Manifold and Gauge Set
Fittings R22 R404A R410A Scale Pressure Low Gauge High Gauge Manifold and Gauge only (No hoses ) (3) 3’
Premium hoses
(3) 5’
Premium hoses
(3) 3’
Premium hoses with Anti-Blowback valves
(3) 3’
Premium hoses with Ball Valves
1/2”-20 UNF   °F/°C Psi/kPa RGBL RGBH MCB MCBJ3 MCBJ5 MCBJ5A MCBJ5E
1/4” SAE 45°   °F/°C Psi/kPa RGBL RGBH MEB MEBP3 MEBP5 MEBP5A MEBP5E
1/4” SAE 45°     °F Psi RGHL RGHH MEH MEHP3 MEHP5 MEHP5A MEHP5E
  • Four valve black anodized aircraft aluminum machined manifold body
  • Vortech™ deep vacuum valves
  • 3-1/8” (80 mm) class 1.0 accuracy gauges built with internal silicon dampening cup for flutter-free operation
  • Nickel plated 1/4” SAE fitings; 3/8” SAE fitting
  • Large sight glass
  • Heavy duty nickel plated metal handles
  • Auxiliary center access port with Schrader valve
  • Protective gauge boots
  • Packaged in display tin
  • Manifold designed and manufactured in USA with US and globally sourced components
Vortech® Valves
Superior performance that actually can be measured!

The Vortech Deep Vacuum Valve System is an advanced diaphram valve system, certified 15 micron vacuum rating using precision-machined virgin Teflon™ core provides a full, unrestricted refrigerant flow and allows a light touch valve operation.

Refrigerant(s) Gauges Manifold and Gauge Set
R22 R134A R404A R407C R410A Scale Pressure Low Gauge High Gauge With (3) 5’  Black & Chrome Hoses With (3) 5’  Ball Valve
        °F Psi RGH4L RGH4H MV4H4P5Z MV4H4P5EZ
    °C bar/Psi MV4O4P5Z MV4O4P5EZ
  • Four valve anodized aluminum pink block body
  • Vortech™ deep vacuum valves
  • 3-1/8” (80 mm) class 1.6 accuracy with optional oil-filled gauges
  • 1/4” SAE 45° fittings
  • Extra large sight glass
  • Protective gauge boots
  • Extra access port in center with Schrader valve and hanging hook
Vortech® Valves
Superior performance that actually can be measured!

The Vortech Deep Vacuum Valve System is an advanced diaphram valve system, certified 15 micron vacuum rating using precision-machined virgin Teflon™ core provides a full, unrestricted refrigerant flow and allows a light touch valve operation.

Refrigerant(s) Gauges Manifold and Gauge Set
R22 R134A R404A R407C R410A Scale Pressure Low Gauge High Gauge Manifold and Gauge only (No Hoses) (3) 5’
Premium Hoses
(3) 3’ Premium Hoses with Anti-Blowback valves (3) 3’
Premium Hoses with Ball Valves
      °F Psi RGH2LB RGH2HB MV13H2 MV13H2P5 MV13H2P5A MV13H2P5E
        °F Psi RGH3L RGH3H MV13H3 MV13H3P5 MV13H3P5A MV13H3P5E
  °C Psi/bar RGO2LB RGO2HB MV13O2 MV13O2P5 MV13O2P5A MV13O2P5E
  °F/°C Psi/kPa RGB3L RGB3H MV13B3 MV13B3P5 MV13B3P5A MV13B3P5E
